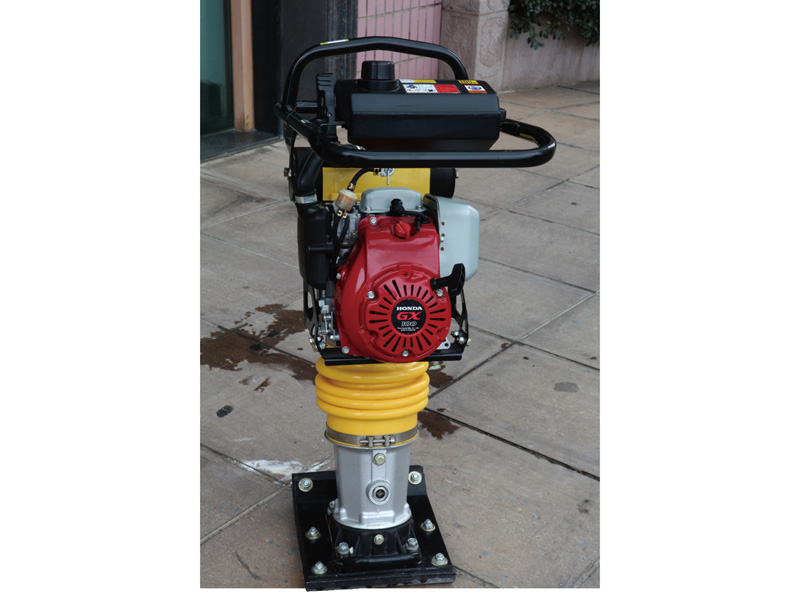

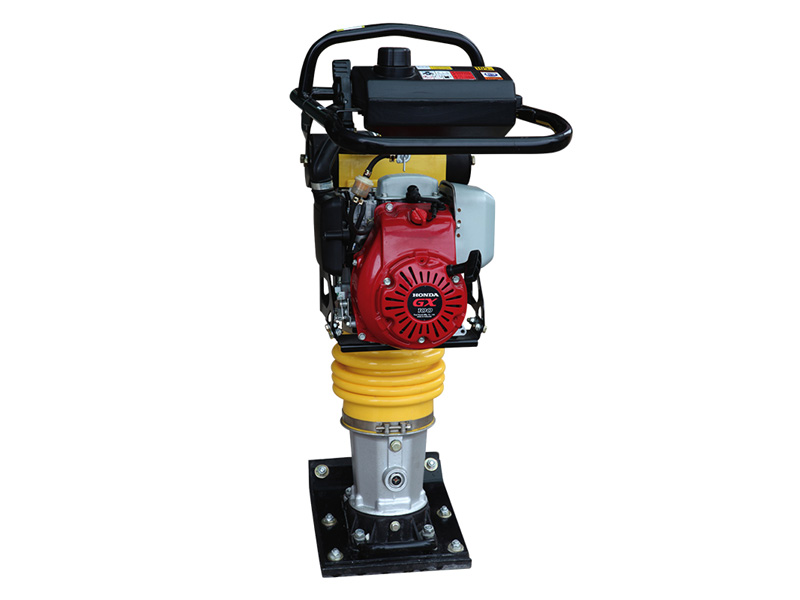

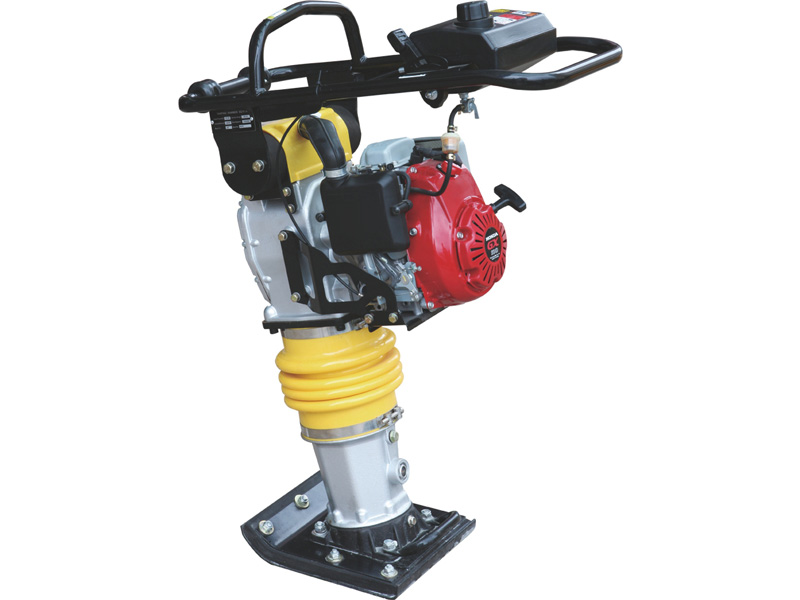

HR70H Vibratory Rammer Tamper Compactor with 3.0 HP GX100

The HR70H is the light Horizont rammer. The weight of 68 kg can be handled very easily, especially in trenches and all job sites where a lightweight and a small rammer foot have their biggest advantages. The rammer is empowered by a 3.0HP Honda GX 100 petrol engine.

Power KW(HP)

2.2(3.0)

Baseplate Size(mm)

330x285/13x11

Weight

68

GET A QUOTE Watch Video

Details

Features：

  • Standard 13*11inch baseplate
  • For work in tight trenches
  • The HR70H rammer is 68 kg
  • Handling the rammer is easy
  • Good view on the rammer baseplate while working.
  • Good protection frame for all relevant components
  • 3.0 HP Honda GX100 petrol engine
  • Operation Mass 68KG/149LBS
  • Compaction of cohesive and granular soils
  • Operate in areas that with poor ventilation, and require low noise, for use indoors.
  • Lifting handles and rollers for easy loading and unloading
  • Easy to use
  • Extreme power, low noise

Technical Data

Item HR70H
Engine Type PETROL(HONDA GX100)
Power KW(HP) 2.2(3.0)
Operation Mass KG/LBS 68(149)
Percussion Rate Per Min Impacting Frequency 650-700
Impact Force(mm) 1350
Jumping Stroke(mm) Jumping Height(mm) 40-90
Fuel Tank Capacity(L) 2.8
Baseplate Size(mm) 330x285/13x11
Travelling Speed(m/min) 0-15
NoiseDb 60
Clutching Running Speed(RPM) 2600
Running Speed(RPM) 4000
Fuel Gasoline
Impacting System Lubricatio 40#
Dimensions(cm) 430x760x1020/17x31x40
Weight 68
Packing Size 46*75*114
Certificate CE
Warranty 1 Year
