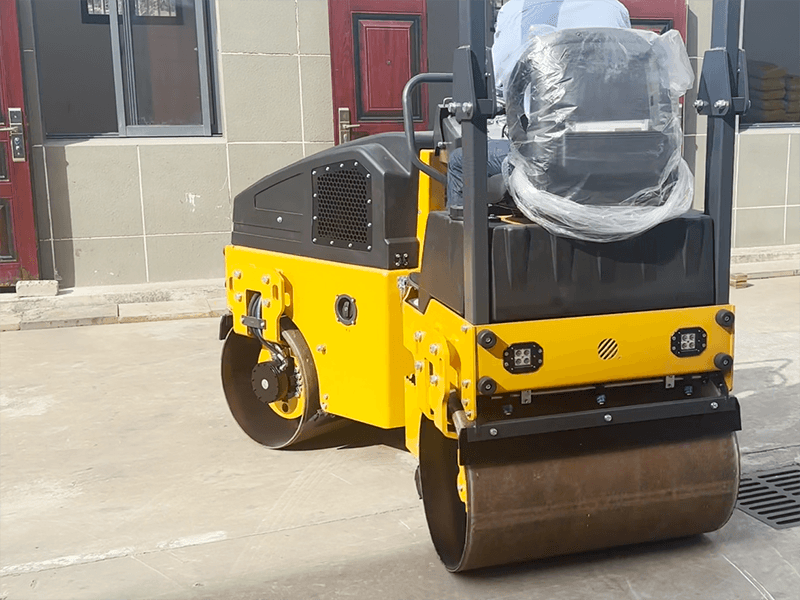

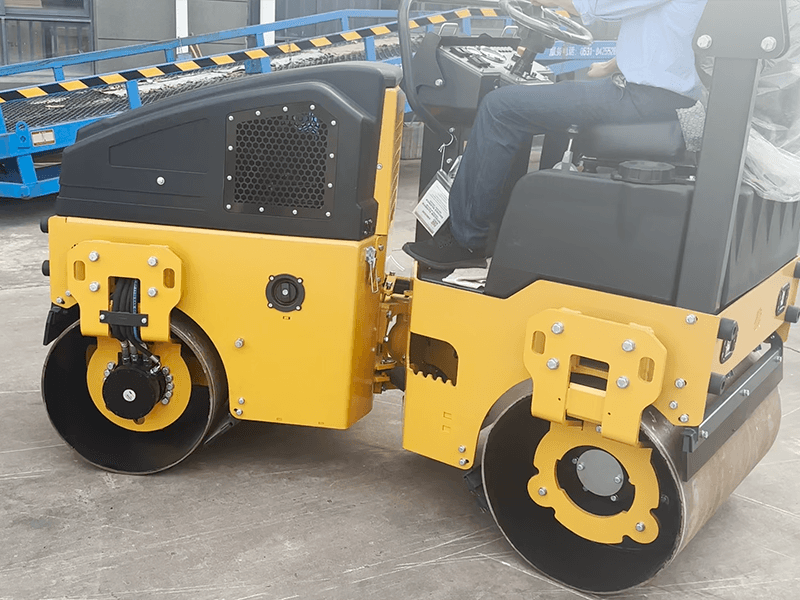

HVR216V Tandem Rollers with KUBOTA engine

HVR216V double drum vibratory rollers with High performance for excellent compaction results.The HVR216V tandem vibratory roller with a dual drum drive and powered by KUBOTA D722 engine. With a front vibrating drum and rear static drum, it offers efficient compaction results in a compact package. This machine is ideally suited for commercial and residential compaction of asphalt and granular subbase material. Primary applications include secondary roads, parking lots, driveways, and repair work.

Weight

1620kg

Static Line Force

92/100N/cm

Drum Size

900*560mm

GET A QUOTE Watch Video

Details

Feature:

  • The Ergonomic Operator Platform minimizes vibration
  • Rated speed is 9km/h with 35% grade ability and ±7° vertical pendulum angle
  • Fuel and water gauges provide the operator with fluid levels during operation
  • Built-in seat with seatbelt allows for safer and more comfortable operation during any season.
  • Centrifugal force 23.5KN with 65Hz vibration frequency
  • Fully recessed hydraulic motors provide excellent curb and side clearance allowing easy compaction near curbs, walls, and in confined areas
  • High quality water-cool KUBOTA D722 engine
  • Excellent drum visibility
  • Fully integrated operating lever
  • Quick, tool-free access to the water pump, water filter, battery, and manuals guarantee easy maintenance of the equipment
  • Italy Poclain hydraulic pump
  • Dual drum hydrostatic drive system
  • Simple transport, simple loading

Technical Data

Item HVR216V
Weight 1620kg
Rated Speed 9KM/H
Vertical Pendulum Angle ±7°
Gradeability 35%
Centrifugal Force 23.5KN
Static Line Force/
Static Linear Pressure		 92/100N/cm
Vibration Frequency 65Hz
Water Tank Capacity 110L
Engine Manufacturer KUBOTA D722
Engine Type Water-Cool Engine
Rated Power 18KW
Oil Capacity 23L
Hydraulic Pump Italy Poclain
Hydraulic Motor Poclain
Emergency Braking/Stop Emergency Button
Drum Size/Compaction Width 900*560mm
Whole Machine Size 2300x1090x2276mm
Packing Size 2300x1090x2276mm
Warranty 1 Year
