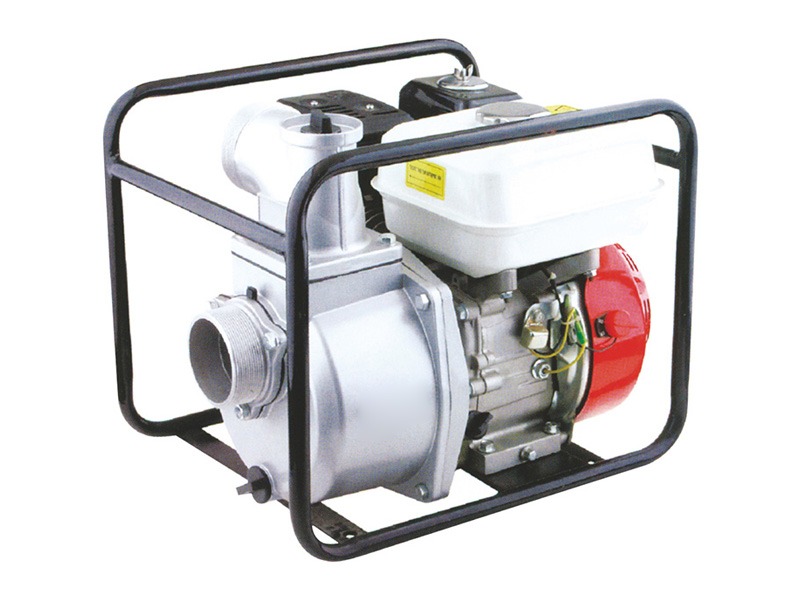

HWP50G/80G/100G Portable Water Pump

The HWP50G/80G/100G Multi-Purpose Water Pump is designed to move a variety of fluids quickly. Powered by a 5.5HP or 6.5 HP engine, the HWP50G/80G/100G effortlessly moves liquids at an astounding rate of 30-80M³ per 5 minutes. The HWP50G/80G/100G enclosed heavy-duty full frame adds pump and engine protection, extending service life while providing easy portable water pumping capabilities for your home, farm, and job site. Along with minimized vibration, HWP50G/80G/100G mounted isolated engine and pump experience less component wear, increasing pump performance.

Inlet/Outlet Size

HWP-50: 2''(50mm)

HWP-80: 3''(80mm)

HWP-100: 4''(80mm)

Displacement Q.Max(M³/5)

HWP-50: 30

HWP-80: 45

HWP-100: 80

Max.Output(HP)

HWP-50: 5.5

HWP-80: 5.5

HWP-100: 6.5

GET A QUOTE

Details

Features:

  • Effortlessly pumps water up to 30-80M³ per 5 minutes
  • The maximum output is 5.5-6.5HP Diesel or Honda engine
  • Handles solids up to 1"
  • Chrome-plated volute is 12x harder than cast iron
  • Vibration isolation mounts improve performance and pump stability
  • Cast iron impeller for smooth performance and long-lasting service
  • 1-year factory warranty


Technical Data

Inlet/Outlet Size 2''(50mm) 3''(80mm) 4''(80mm)
Running Speed(RPM) 3600 3600 3600
Displacement Q.Max(M鲁/5) 30 45 80
Lift H.Max(m) 56 25 25
Suction(m) 7 7 7
Max.Output(HP) 5.5 5.5 6.5
Bore Stroke(mm) 68x54 68x54 88x64
Displament 63ML 196ML 389ML
Max.Torque 10N.M/2500RPM 11N.M/2500RPM 21N.M/2500RPM
N.W(kg) 38/26 52/30 69/46
Dimension(cm) 54x47x54 Diesel 170F      52x38x45 Honda Gx160 61x47x58 Diesel 178F      52x38x45 Honda Gx160 67x50x62 Diesel 186F     63x46x58 Honda Gx270
Warranty 1 Year 1 Year 1 Year
